. : ATTACH BRAKE RETENTION STRAP : . |
Copyright © 2005 DanTech Studios |
Step 6. |

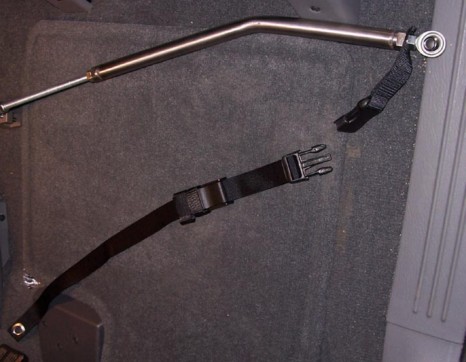

Attach the lower retention strap to the upper short retention strap on the accelerator
arm. |

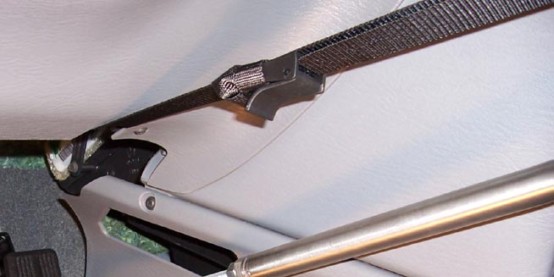

Attach lower brake retention strap to short upper brake retention strap. IMPORTANT:
This strap must be snug but not overly tight as if too tight it will pull down on the throttle and cause the engine to race. |
The throttle arm can be lengthened or shortened using 2 9/16ths open -end wrenches. Loosen the lock nut and adjust accordingly. This threaded rod is a normal right hand thread. |
