. : INSTALL CONTROL HANDLE : . |
Copyright © 2005 DanTech Studios |
Step 5. |
Attach the accelerator arm to the control handle. |

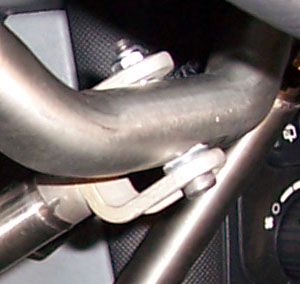

Attach the control handle to the brake arm clevis (be sure that you slide the retaining
bolt into the clevis from the bottom up and that it slides all the way through without catching on the lip inside the handle on the way up, secure with the lock nut.) Now attach the accelerator arm to the control handle and tighten the black knob to secure. (Remember, the eye ring should always remain between the clevis and the sliding bolt cover.) |
Connect the control handle to the clevis at the top of the brake arm using the shoulder bolt with the allan key end coming up from the bottom and the 3/8ths lock nut attaching to the top. Make sure this shoulder bolt is completely through the handle insert and not hanging up part way. Connect the throttle side by removing the black knob and the silver nut sert, put the rod end bearing on the handle, then secure it with the nut sert then the black handle knob. |
- The control handle should give you full throttle and full brake without touching anything. Full throttle should be at about ¼" away from the back of the steering wheel. Some vehicles will not be able to tilt the steering wheel and some will have limited tilt adjustment. |
